110V 5K AC Gear Motor 250W Electric Single-Phase Motor Speed Reduction Controller Adjustable Variable Speed Large Torque 0-270 RPM/min

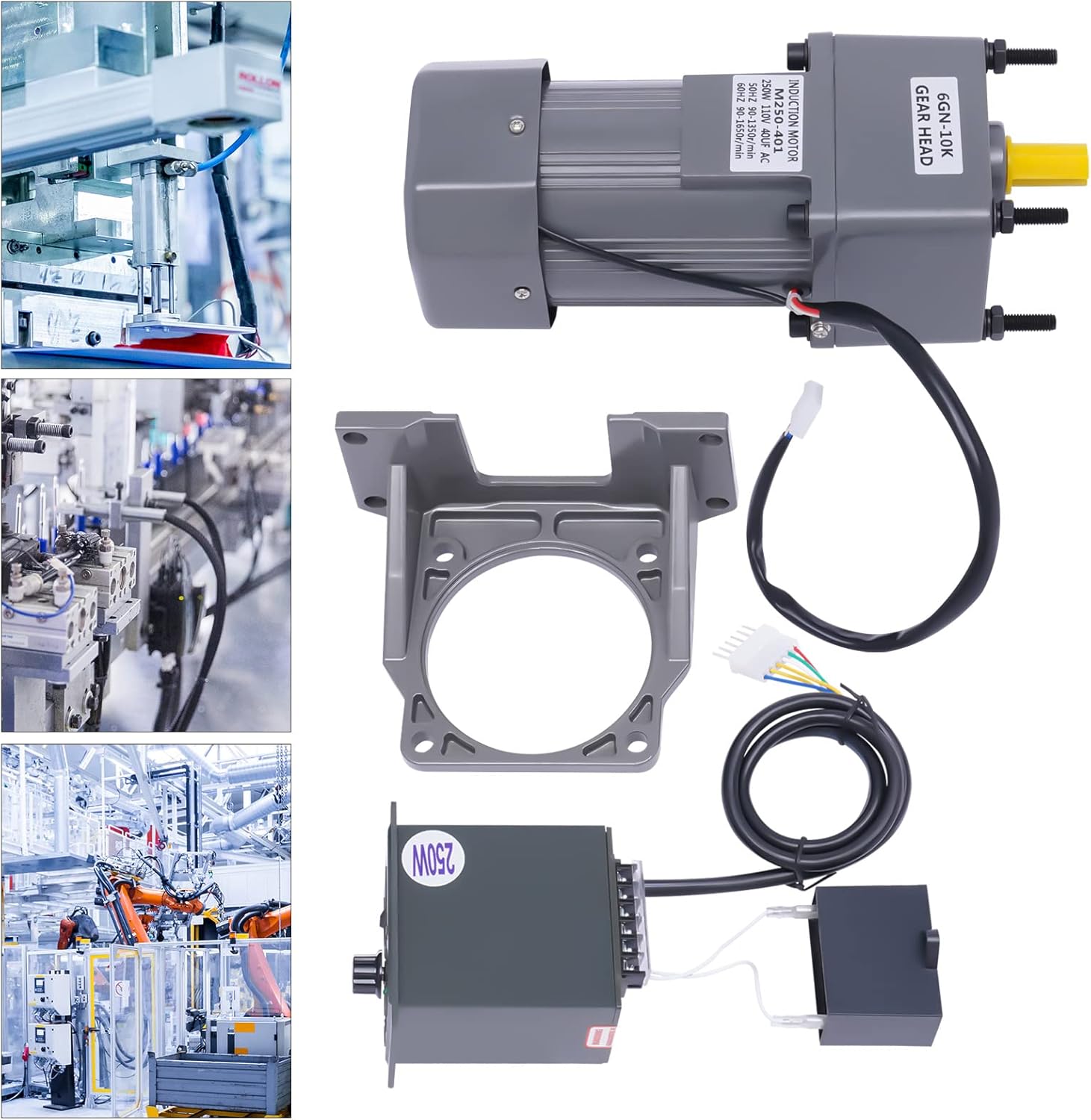

The product includes a complete set of accessories. In addition to the motor, it is also equipped with a bracket, a reducer, and a speed regulator for your convenience. This gear adjustable motor is primarily used to reduce the speed of a series of gears, thereby producing more power torque to improve working efficiency.SpecificationsMaterial: Aluminum AlloyGear Material: SteelCoil Material: CopperType: Single-PhaseColor: GreyPower: 250WVoltage: 110V 60HzEngine Speed Ratio: 5K Torque: 8 N.mOutput Speed Range: 0-270rpm (Infinitely Adjustable Speed 0%-100%)Upper Side Length of Bracket: 10.4cm/4.1inchLower Side Length of Bracket: 16cm/6.3inchBracket Width: 7.5cm/3inchBracket Height: 12.5cm/4.9inchGovernor Size: 9 * 6 * 10cm/3.5 * 2.4 * 3.9inchMotor Size: 19 * 10.4 * 8.4cm/7.5 * 4.1 * 3.3inchDimension of Reduction Gearbox: 6.6 * 10.4 * 8.4cm/2.6 * 4.1 * 3.3inchPacking Size: 33*26*13cm/12.99*10.23*5.11inGross Weight: 7.9kg/17.41lbsNet Weight: 7.3kg/16.09lbsPackage Included1 x Motor1 x Reduction Gearbox1 x Governor1 x BracketNotes1. When the motor is working, it is normal for the temperature to rise to about 65℃/149℉. Please rest assured that it will not affect your use.2. Please do not knock the motor and the body of the governor.3. Please disconnect the power supply before changing the wire.4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

• 【Product Parameter】Rated voltage: 110V 60Hz; Output Speed Range: 0-270rpm (Infinitely Adjustable Speed 0%-100%); Engine Speed Ratio: 5K ; Type: Single-Phase; Torque: 8 N.m
• 【High Efficiency】The stator and rotor are made of pure copper coils with good electrical conductivity, allowing for a constant high and stable power output. Adopting high-precision steel gears effectively increases the torque of the motor, which greatly enhances its working efficiency.
• 【Speed Control Knob】You can freely adjust any speed according to the different situations by turning the speed control knob. The faster/slower you turn the knob to the right/left, the faster/slower the speed.
• 【Forward and Reverse Rotatable】The governor is initially specified for forward rotation, but you can connect the wires on the CCW to the CW and then it can be converted to reverse rotation to suit your different needs.
• 【Application】This 6.3*4.1 inch stand with two outwardly extending feet can better maintain product stability and ensure smooth operation. It is suitable for the packaging industry, printing industry, textile machinery, food, construction, C-N-C equipment, sports equipment, machine tool industry, automobile, robot industry, production plant, elevator machinery, barbecue industry, etc.
